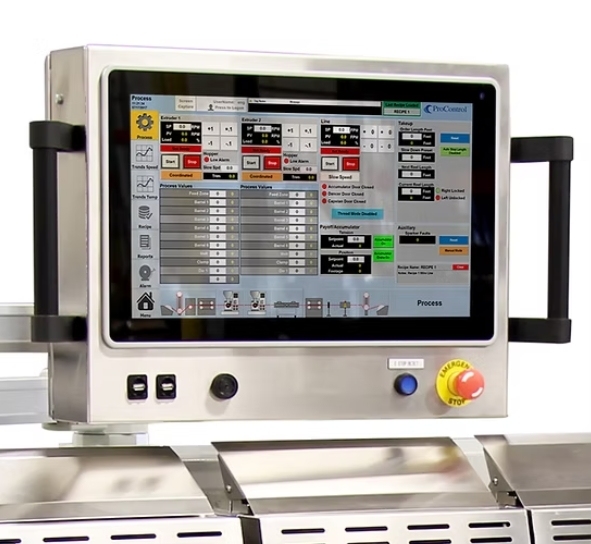

Extruder Integrated Control System
I. Core Functions: Covering the Entire Production Lifecycle
(I) Real-time Data Acquisition and Visual Monitoring – “Visible Production Status”
This is the foundation of the IoT system, requiring comprehensive collection of equipment, raw material, and product-related data to avoid “black box operations”:
1. Equipment Core Parameter Acquisition (High Frequency + Precision)
◦ Temperature Control Data: Real-time temperature (accuracy ±0.5℃) of each section of the barrel, die head, and die, deviation between set and actual values, heating coil working status (fault status, power output);
◦ Power Data: Screw speed, torque, motor current/voltage/power, reducer oil temperature, vibration value, feeder speed and feed rate;
◦ Process Data: Melt pressure, extrusion volume, traction speed, cooling water temperature/flow rate, setting pressure;
◦ Safety Data: Equipment operating status (start-up/shutdown/…) 1. Standby), emergency stop trigger record, door opening/closing status, and exhaust gas treatment equipment operating parameters.
2. Visual Presentation (Multi-Terminal Adaptation)
◦ Local Terminal: The equipment touchscreen displays a real-time data dashboard (temperature curve, pressure fluctuation, speed trend), with abnormal data highlighted in red for early warning;
◦ Remote Terminal: Displays data synchronously on mobile APP and computer web terminal, supporting custom data panels (e.g., filtering by shift group or equipment number), and data export (Excel/PDF). (II) Intelligent Early Warning and Fault Diagnosis – “Avoid Risks in Advance and Solve Problems Quickly”
Based on data modeling and algorithm analysis, achieve “prediction + self-healing” to reduce downtime:
1. Multi-level Early Warning Mechanism (Precise Problem Location)
◦ Threshold Early Warning: Alarms are triggered via “audio-visual (local) + APP push/SMS/email (remote)” for issues such as temperature exceeding upper limits, sudden pressure rise/fall, motor overload, and insufficient cooling water flow. Tiered settings (reminder → warning → emergency shutdown) are supported.
◦ Trend Early Warning: Data trends are analyzed using AI algorithms (e.g., a slow increase in temperature over 10 minutes, or a gradual increase in screw torque) to predict potential faults (e.g., aging heating coils, screw wear, or die blockage), and “pre-treatment suggestions” are pushed in advance (e.g., “recommend replacing 3 heating coils within 24 hours”).
◦ Raw Material Early Warning: Excessive raw material moisture content (based on dryer linkage data), low hopper level (weighing sensor), or deviation in masterbatch ratio (data from the quantitative feeder) triggers “pause feeding” or… "Adjust Mixing Ratio" reminder.
2. Intelligent Fault Diagnosis and Traceability
◦ Automatic Fault Location: The system has a built-in fault knowledge base (e.g., "Sudden increase in melt pressure + normal die temperature → high probability of filter blockage"). When a fault occurs, it directly displays "Fault Cause + Troubleshooting Steps + Solution" (e.g., "Shut down the feeder → Cool down to 150℃ → Replace the 80-mesh filter");
◦ Fault Traceability: records complete data curves (temperature, pressure, speed) for 10 minutes before and after the fault, facilitating technicians to review the root cause (e.g., whether pressure fluctuations were caused by poor plasticization due to moisture in the raw materials). (III) Intelligent Optimization and Closed-Loop Control of Process Parameters – “Automatic Adjustment, Stable Product Quality”
Based on data algorithms and historical experience, precise process control with “minimal human intervention” is achieved, avoiding the lag and errors of manual adjustments:
1. Adaptive Process Adjustment
◦ Linkage Adjustment: Parameters are automatically corrected based on real-time data (e.g., if the product diameter is too large, the traction speed is automatically increased by 0.5%; if the melt pressure is too high, the screw speed is finely adjusted to decrease by 1 r/min), ensuring product dimensional tolerances (e.g., ±0.1 mm) and appearance consistency;
◦ Raw Material Adaptation Optimization: Upon inputting the raw material type (e.g., PMMA, glass fiber reinforced PP), the system automatically calls upon the historical optimal process parameter library (temperature curve, screw speed, feed rate) and dynamically fine-tunes based on real-time plasticizing effects (e.g., automatically increasing the barrel temperature by 5~8℃ for high-viscosity raw materials);
◦ Energy Saving Optimization: Algorithms balance “plasticizing efficiency” and “energy consumption” (e.g., automatically reducing heating coil power and adjusting screw speed during low-capacity periods to avoid idle energy consumption), achieving “energy consumption on demand.” 2. Process Parameter Traceability and Reuse
◦ Automatically stores complete process parameters (temperature, speed, pressure, traction speed, etc.) for each batch of production, linked to the product batch number, supporting "one-click reuse" (directly called up when producing the same specification product again);
◦ Process version management: Records parameter modification records (who modified, when modified, what was modified), avoiding quality problems caused by misoperation, and facilitating compliance audits (such as the production traceability requirements for medical-grade and food packaging products).
(IV) Remote Control and Collaborative Management – ​​"Control Production Anytime, Anywhere"
Breaking spatial limitations, achieving centralized management of multiple devices and multiple plants, reducing labor costs:
1. Remote Operation Permissions (Hierarchical Control)
◦ Basic Permissions: Remotely view equipment status, data curves, and alarm records (applicable to management personnel);
◦ Operation Permissions: Remotely start and stop equipment, adjust process parameters (requires password verification + operation log recording, applicable to technical personnel);
◦ Prohibited Permissions: Remote emergency stop only retains local operation, avoiding safety risks caused by network latency. 2. Centralized Management of Multiple Equipment
◦ Supports simultaneous monitoring of multiple extruders (grouped by plant area, workshop, and equipment number), displaying the operating status (normal/warning/fault), capacity statistics, and energy consumption ranking of all equipment on a unified platform;
◦ Supports equipment linkage control (e.g., linkage between dryer and extruder: automatic start-up after raw material drying meets standards, locking the feeding system if standards are not met).
(V) Energy Consumption and Cost Control – “Refined Cost Reduction”
Quantifying energy consumption and consumable consumption through data to avoid waste:
1. Real-time Energy Consumption Monitoring and Analysis
◦ Detailed energy consumption data: motor power consumption, heating coil power consumption, cooling water pump power consumption, etc., statistically analyzing unit product energy consumption (e.g., “0.8kWh of electricity is consumed per kg of acrylic rod produced”);
◦ Energy consumption optimization suggestions: The system analyzes peak energy consumption periods and high-energy-consuming equipment, pushing optimization solutions (e.g., “Adjusting the temperature of section 3 to 205℃, expected to save 5% of electricity per hour”, “Avoiding production during peak electricity consumption periods to reduce electricity costs”). 2. Consumables Management
◦ Record the lifespan of easily damaged parts (e.g., heating coil usage time, filter replacement frequency), and predict replacement cycles based on operational data (e.g., "The current filter has been used for 80 hours; replacement within 10 hours is recommended");
◦ Calculate raw material loss rate (e.g., the difference between actual extrusion volume and theoretical raw material consumption), analyze the causes of loss (e.g., die leakage, excessive product head and tail cutting), and push improvement suggestions.
(VI) Production Traceability and Automatic Report Generation – "Compliance + Efficient Management"
Meeting quality traceability requirements and reducing manual statistical workload:
1. Full-Process Traceability
◦ Related Data: Product batch number → Raw material batch (supplier, arrival time, drying parameters) → Equipment number → Process parameters (temperature, speed, pressure) → Operator → Quality inspection data (diameter tolerance, appearance inspection results);
◦ Traceability Method: Scan the product batch QR code/barcode to directly view the entire chain of data, facilitating customer review or quality issue recalls. 2. Intelligent Report Generation
◦ Automatically generates multi-dimensional reports: Daily production reports (capacity, pass rate, downtime), equipment operation and maintenance reports (number of failures, maintenance records), energy consumption reports (daily/weekly/monthly energy consumption trends), and quality reports (types and percentages of non-conforming products);
◦ Report customization: Supports filtering dimensions according to management needs (e.g., capacity statistics by work group, pass rate statistics by product model), and automatically pushes reports to designated email addresses (e.g., daily morning meeting reports for management personnel). (VII) Predictive Maintenance – From “Post-Incident Repair” to “Pre-Incident Maintenance” Based on equipment operation data and AI algorithms, extend equipment life and reduce unplanned downtime:
1. Core Component Health Monitoring
◦ Screw/Barrel: Assess wear levels through torque fluctuations and plasticizing efficiency data (e.g., “The gap between the screw and barrel has reached 0.4mm; maintenance is recommended within 3 months”);
◦ Motor/Gearbox: monitor vibration values, oil temperature, and current fluctuations to predict bearing wear and gear failures;
◦ Heating Coil/Thermocouple: Assess aging levels through heating response speed and temperature deviation, and schedule replacement in advance.
2. Automatic Maintenance Plan Generation
◦ The system automatically generates a maintenance list based on equipment runtime and component health (e.g., “Clean the filter weekly; calibrate the temperature controller monthly”) and sends reminders;
◦ Maintenance Record Traceability: Record maintenance time, operator, and replaced component models to create an equipment “health file” for easy analysis of maintenance effectiveness. II. Core Features: Key Advantages Differentiating It from Traditional Extruders
1. Data-Driven, Precise Decision-Making
• Breaks away from the traditional "experience-based parameter adjustment" model. All operations (process adjustments, maintenance, shutdowns) are based on real-time data and algorithm analysis, reducing human error (e.g., temperature control accuracy improved from ±2℃ to ±0.5℃, product qualification rate increased by 5-10%).
2. Remote Collaboration, Improved Efficiency
• Supports cross-regional management (e.g., headquarters monitoring branch plant equipment), eliminating the need for on-site monitoring (e.g., during nighttime production, managers receive alerts via an app and remotely guide workers), reducing labor costs;
• In case of equipment failure, technicians can remotely view data curves, quickly locate the problem, and shorten downtime (unplanned downtime reduced by 30-50%). 3. Proactive Early Warning, Controllable Safety
• Shift from "passively responding to faults" to "proactively avoiding risks," preventing safety accidents caused by equipment overload or temperature runaway (such as melt splashing or fire);
• Hierarchical safety access control (e.g., ordinary workers cannot modify core process parameters), traceable operation logs, and compliance with safety production standards.
4. Energy Saving and Cost Optimization
• Precise energy consumption control (e.g., heating coils output power on demand, motor frequency conversion to adapt to load), reducing unit product energy consumption by 8-15%;
• Reduced raw material loss (e.g., avoiding waste due to poor plasticization) and waste of vulnerable parts (e.g., replacing parts according to their actual lifespan, avoiding premature replacement or use beyond their expiration date), resulting in an overall cost reduction of 10-20%. 5. Flexible Production, High Adaptability
• Supports rapid production changeover: The system stores multiple sets of product process parameters, which can be recalled with a single click during production changeovers, eliminating the need for re-adjustment (reducing changeover time by 40-60%).
• Adapts to multiple raw materials: Through a raw material database and adaptive algorithms, it can quickly switch between raw materials with different properties such as PE, PP, PMMA, and PVC without significant equipment adjustments.
6. Scalable, Compatible with Future Upgrades
• Supports integration with factory MES/ERP systems, enabling end-to-end collaboration between "equipment - production - inventory - orders" (e.g., automatically adjusting capacity based on order volume, synchronizing production data to ERP for cost statistics).
• Reserved interfaces allow for future additions of AI visual inspection (e.g., product surface defect recognition), automatic batching systems, AGV material delivery modules, etc., to meet intelligent upgrade needs.
III. Key Technical Support (Ensuring Functional Implementation)
• Sensors: High-precision temperature sensors, pressure sensors, torque sensors, weighing sensors (material level/raw material weight), vibration sensors (equipment health monitoring);
• Communication Protocols: Supports 5G/Wi-Fi/Ethernet (wired), ensuring stable data transmission (latency ≤1s), compatible with industrial communication protocols such as MQTT and OPC UA;
• Edge Computing: The equipment has local data preprocessing capabilities (such as abnormal data filtering and simple algorithm analysis), avoiding reliance on cloud networks and improving response speed;
• AI Algorithms: Machine learning models (for fault prediction and process optimization), big data analysis (for energy consumption optimization and quality traceability);
• Security Protection: Encrypted data transmission (HTTPS), equipment access control, local data backup (to prevent data loss in case of cloud failures).
